3D SYSTEM SOLUTION

​​​​​​​

3D SYSTEM SOLUTION


Specifications:


LE-VISION SINGLE BEAM LIGHT

Singal CableD-Sub Jack 37Pin to 3Pin MiniDin 3Pin to MinDin3Pin
Applied ProjectorDLP-Link Projector
Applied ServerDigital Cinema server certified by DCI
Applied ScreenMetal silver screen with above 2.0 gain
Storage Temp-10°-65°C
Working Temp-5°-50°C
Automatic:Automatic 2D to 3D and 3D to 2D
CompatibilityAll 2K/4K
ProjectorsChristie / Barco / NEC
ColorBlack
Polarized TypeCircular Polarized
Working Frequency96-200Hz, Support the mainstream 24 frame movies, also above 48
Light Valve Transmitance42%±1%
Light Use effieciency18%±1%
Ghosting RateBright and Low Ghost 3D 1.5%
Light Response Time< 150μs
InputAC 100-240V 1.6A 50`60HZ
OutputDC24V/3A
Working Life>80000 hrs
Big Screen

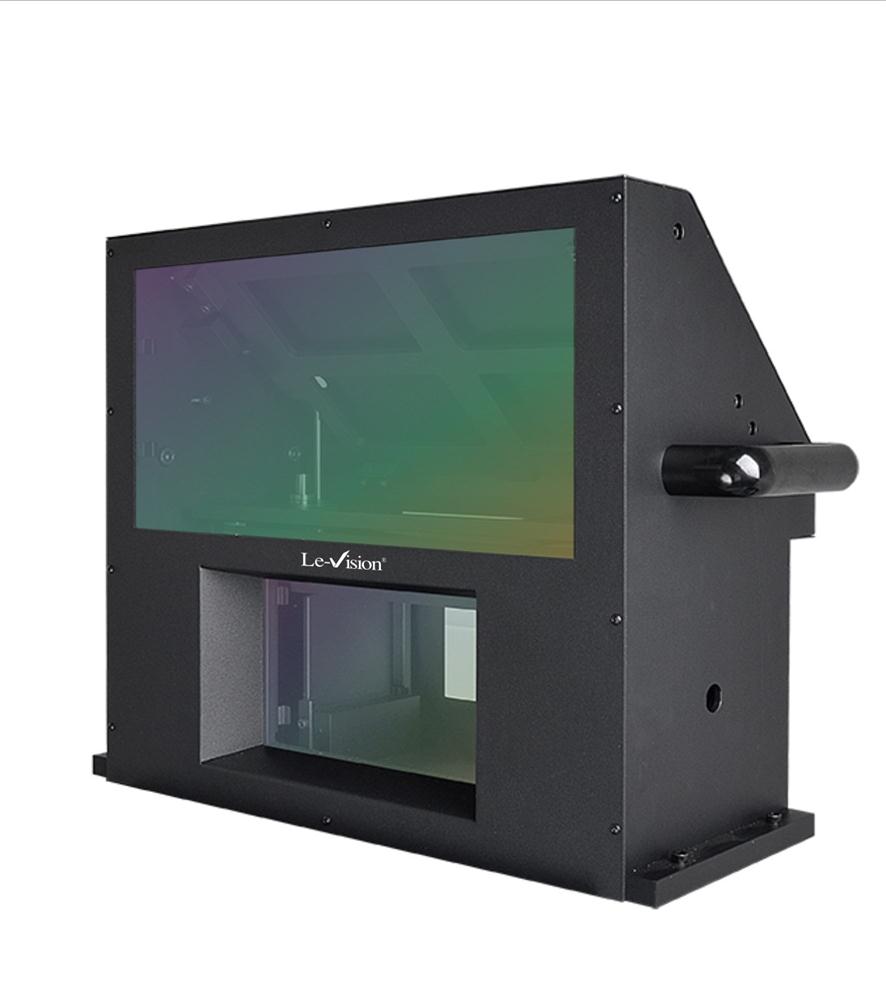

LE-VISION DOUBLE BEAM LIGHT

Product size550* 205* 370mm
Light Transmittance74%±1
Crosstalk<1.5%
TMSOptional
Operating Frequency96Hz~240Hz
Signal Input InterfaceSubD37/9
Input VoltageAC110/240V 50/60Hz
Operating Temp-10oC~+40Hz
Storage Temp-10oC~ +70oC
Working Lifep>50000 hrs

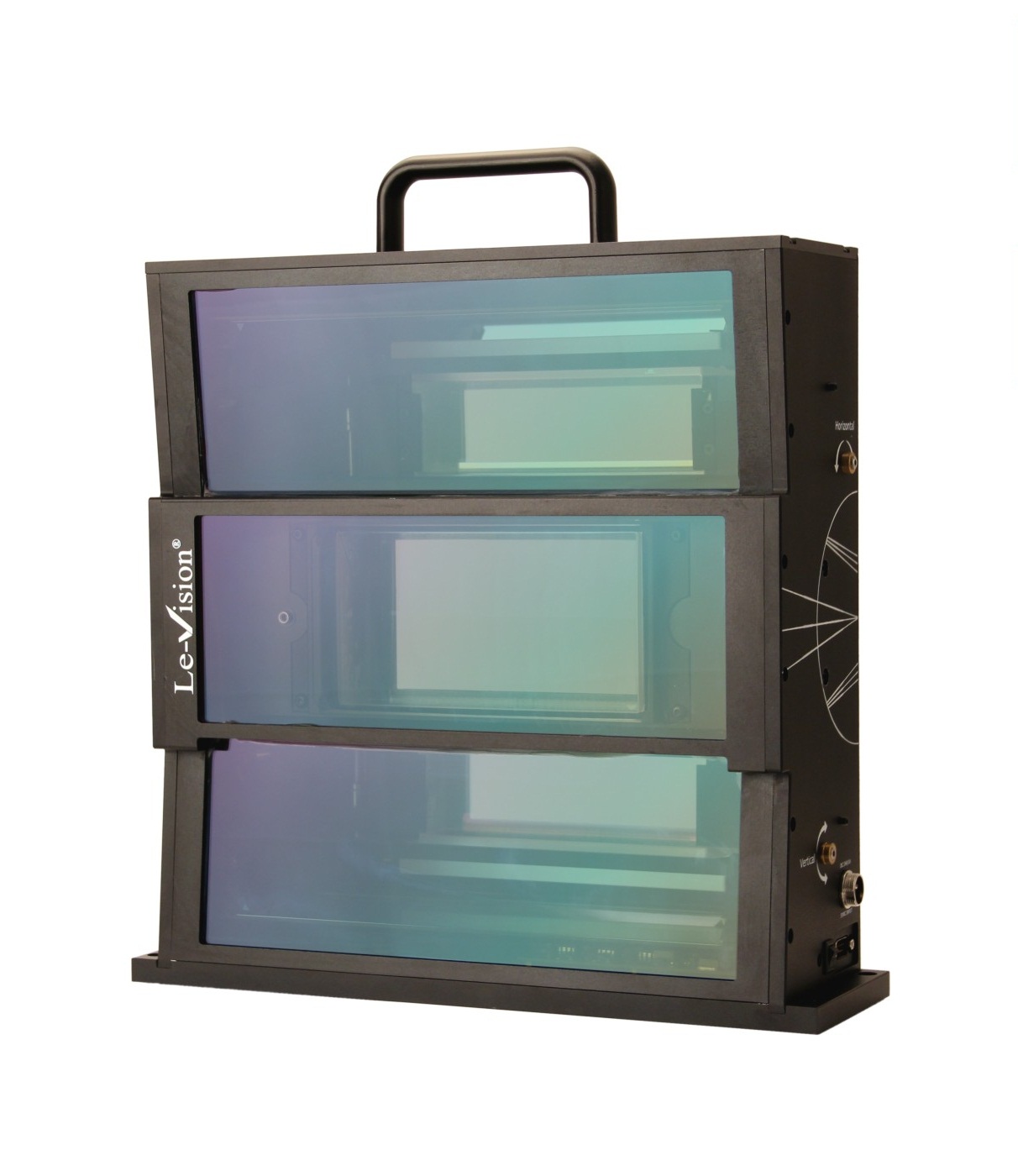

LE-VISION TRIPLE BEAM LIGHT

Product size358* 108* 399mm
Light Transmittance77%±1
Optical Efficacy Ghost32%±1 Bright and Low Ghost

3D <1.5%
Crosstalk<1.2%
TMSOptional
Transmittance>=1.0
Operating Frequency96Hz~200Hz
Signal Input InterfaceSubD37/9
Input VoltageAC110/240V 50/60Hz
Operating Temp-10oC~+40Hz
Storage Temp-20oC~ +70oC
Working Lifep>50000 hrs

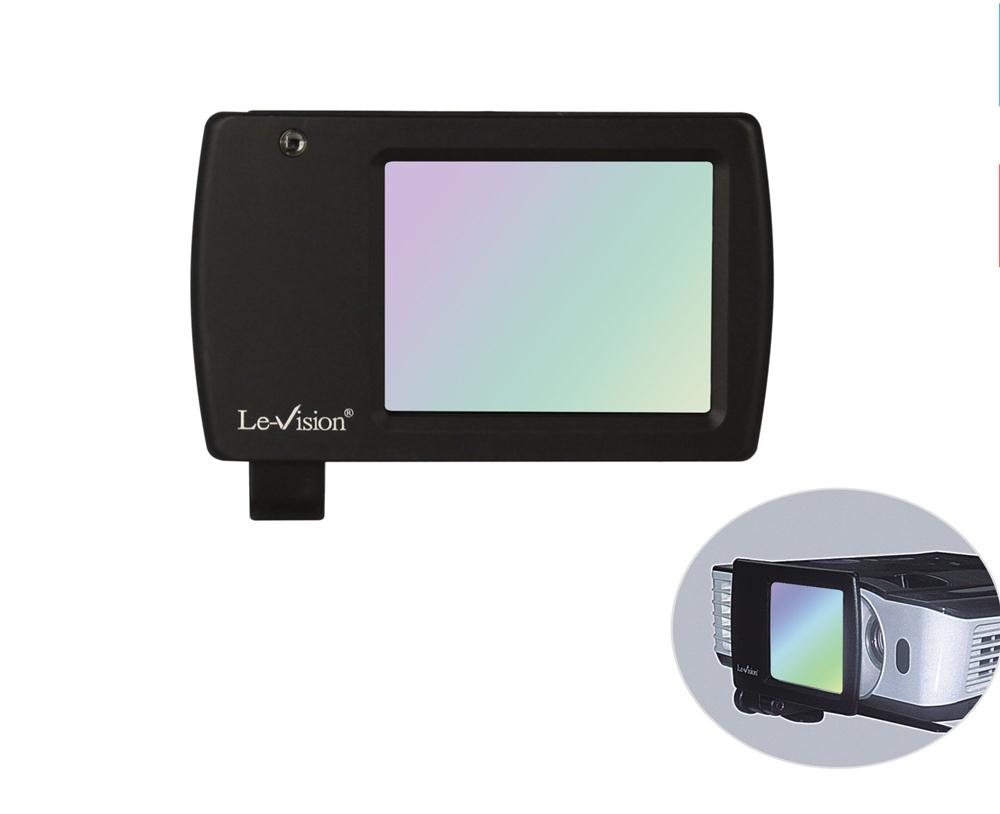

MINI HOME THEATRE SYSTEM

Product Dimension156* 120*96mm
Light Value size86*67mm
Weight500g
Optical efficiency16%
Contrast100:1
Maximum Power6000 lumens
Power500mW
Largest Switching Speed150Hz(VESA)
Operating Tem+10oC to +65oC
Strong Temp+30oC to + 65oC

Advantages:

High Light Efficiency

Transmittance improved to 78% from 39% of the first generation passive 3D system, Light efficiency increased to 36% from 17%.

High Light Ratio

The ratio increased to 150:1 by special ratio technology, 3D images better.

More Economical

30% high light efficiency, allow lower lumens bubbles to reduce operation cost.

3D More Fluent

Fully support 24FPS, 48FPS and 60FPS 3D contents, the 3D effect of moving images more fluent.

Super Compatibility

Fit for shooting ratio above 1.0:1 theaters, shortest shooting distance 7 meters, projection window requirement reduce to 40*30 CM

DCI Approved
