Specifications:

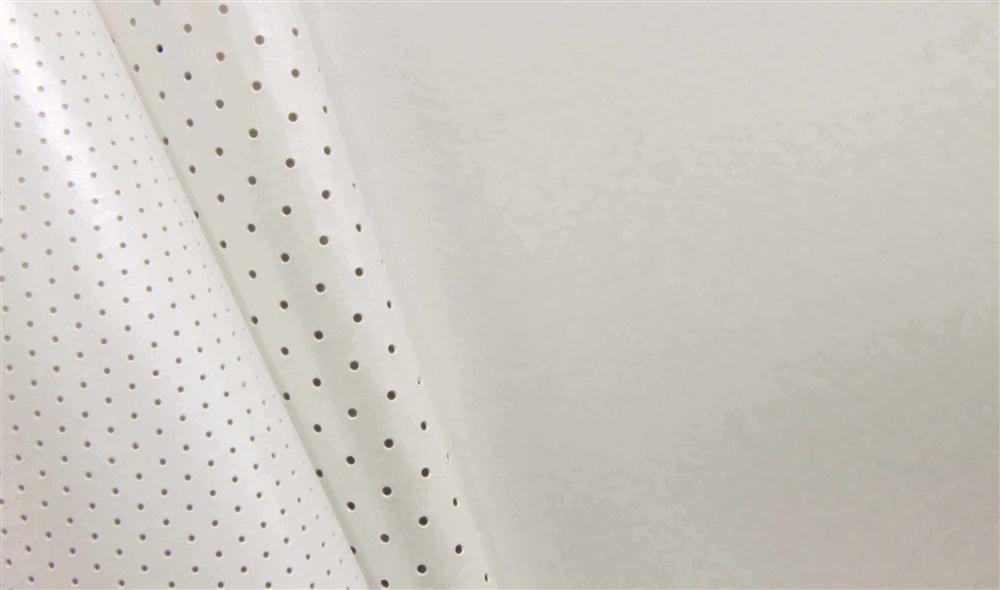

We are providing the 3D pearl screen with higher gain from 1.1 to 2.2 gain value.
☆ Maximum size 34 X 18.7m Manufactured in Korea.
☆ Coating tower: 3 units
☆ Gain : 1.1',1.3',1.4',1.8',2.2'
☆ HGA : N/A,75',50',28',22.5'
☆ SNR : 190,250,275
☆ Cloth width: 1.4m
☆ Thickness: 0.3mm
☆ Weight : 0.52kg/m
☆ Adjoining method: High-frequency adjoining (Seamless)
☆ PVC (Fire Proof) Cloth Material
☆ Perforation size: SP (1.2mm) / DP (0.9mm) / MP (0.6mm)
☆ Perforation density: 4.97%
☆ Web and Eye (grommet), triple fold web integral with surface
☆ Eyelet spacing: 151~210mm.( Adjustable )
☆ Fire certification: China NFTC, France M2, Japan JFRA, Korea KOFEIS 1001, USA NFPA 701
☆ Cloth web and fixings (snaps) for press stud frame
☆ Performed pipe pocket any size on any side
☆ Straight sides or shaped to special order
☆ Cut square (unfinished edge)
